Inject request headers using Cloudflare

So I had a requirement to inject a HTTP Header into a web request, detect it server-side and either include or omit code depending on the value of the header.

We wanted to use it as a way to signal if the server should activate or deactivate a control, using a single location to control it, across multiple URL’s, which must be hidden to the end user. We couldn’t use a config file or the usual things like App Config, URL parameters or on Page items, so we decided to inject HTTP Headers via our infrastructure.

As it stands using Cloudflare is quite easy to accomplish this.

The Solution

Inject the header

Within Cloudflare, add a HTTP Request Rule

Detect the header

Within the code, detect the newly injected header like so:

@{
  bool isHeaderDetected = false;
  bool.TryParse(Request.Headers["X-MyNewHeader"], out isHeaderDetected);
}



@if (isHeaderDetected)
{
    // We have a header - add what we need to add / omit what we need to omit
}
else
{
    // We don't have a header - add what we need to add / omit what we need to omit
}
This could also be done in any other routine and language which fires on a HTTP request.

Testing

Testing it locally is a little more tricky, as you need the code running locally but can’t use Cloudflare to inject the header.

So the trick I came up with was to use a free product called Fiddler from Telerik.

Fiddler is no longer in active development, as Telerik are moving over to other paid products, so if you are concerned about security updates then it’s probably best to choose something else.

Download Fiddler from the Telerik website.

It will as for email address, you can put anything in here as long as it’s a valid format.
Fiddler 4 is only available on Windows, Telerik have newer products which run on Mac and Linux, but these are paid for options.

Once downloaded, install it by running the .exe file.

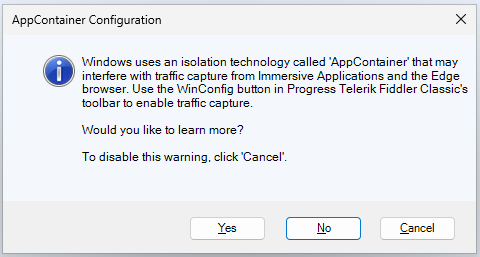

Open Fiddler, you will be prompted with a dialog asking if you want to learn more about App Containers, select Cancel to disable this.

alt Dialog asking if the user wants to learn more about App Containers

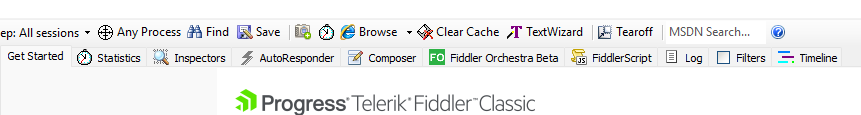

On the AutoResponder Tab.

alt Location of the AutoResponder tab on the taskbar of Fiddler

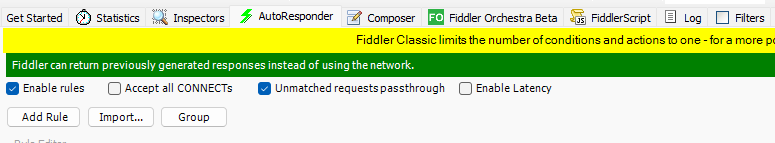

Put a tick in the checkboxs Enable rules and Unmatched requests pass through

alt Fiddler Auto Responder tab with the Enable Rules and Unmatched Request Pass through options checked

Select Add Rule to ad a new rule entry.

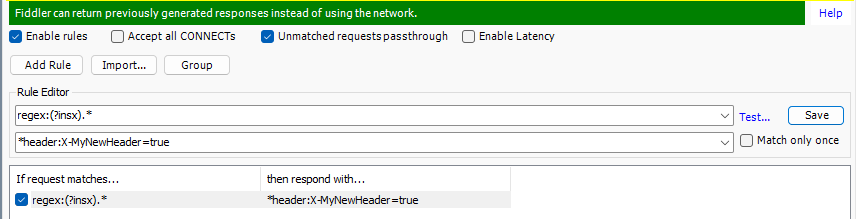

In the field If request matches add the condition for the requests you want to modify.

alt Fiddler Auto Responder tab with the example rule completed

e.g.

You can use a regular expression to match URLs.

regex:(?insx).*

will match all incoming requests, use the drop down on this field to explore more options

Then in the then respond with field, select *header from the drop down list and then specify the header you want to inject.

e.g.

*header X-MyNewHeader: true

Click the Save button and then put a tick in the box to Enable the Rule

This rule will inject the X-MyNewHeader with the value true into all requests matching the specified URL pattern.

Feel free to adjust the conditions and headers / values to suit your specific needs.
